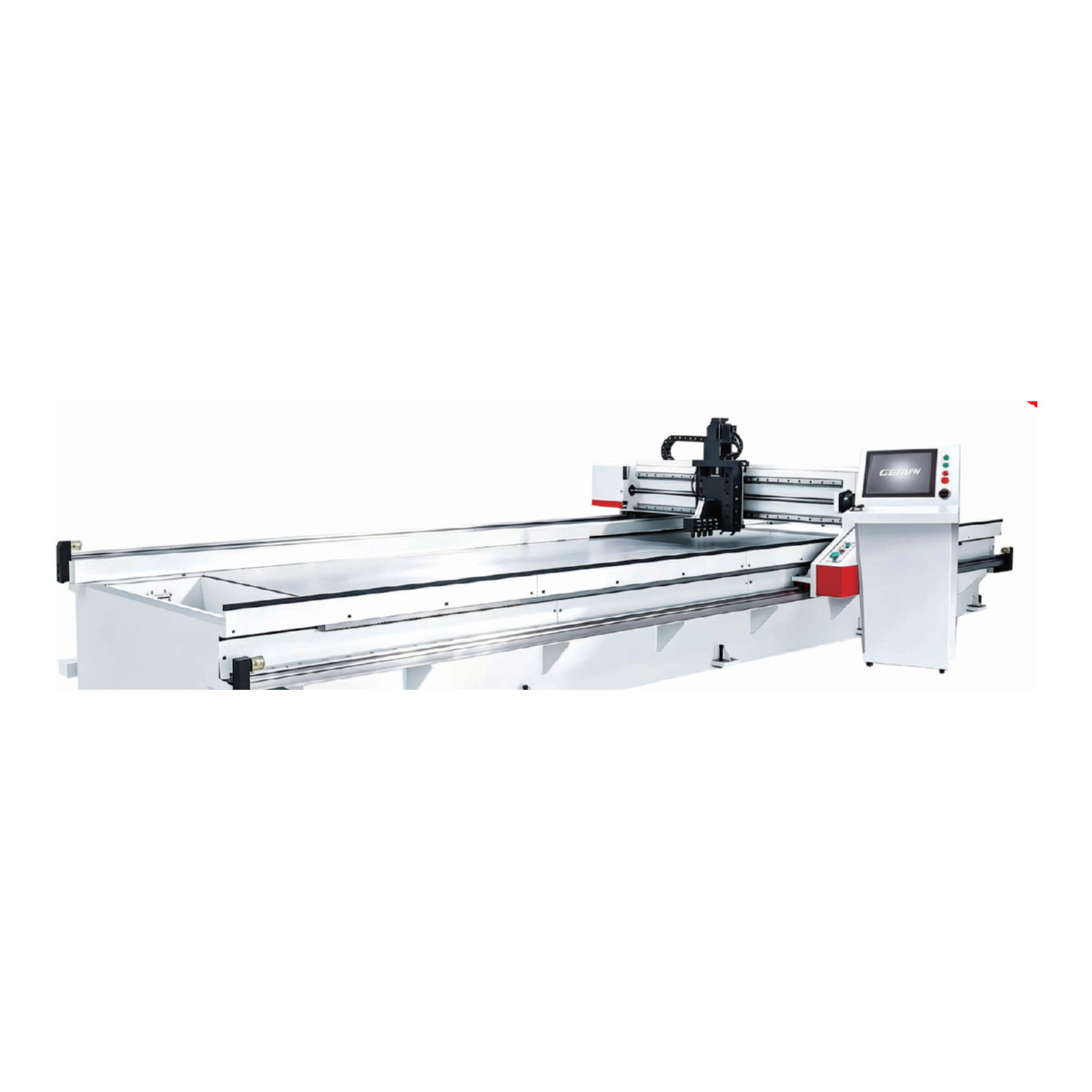

GMV1250x4000 Horizontal CNC V-Grooving Machine
Max. processing length 4000 mm | Plate thickness range 0.5-4 mm | Horizontal CNC V-Grooving Machine
GMV1250x4000
Horizontal CNC V-Grooving Machine
GMV series adopts a high-rigidity frame and beam, tempered at high temperature after welding to ensure stable and durable accuracy. Frequency-controlled international-brand spindle motors keep the beam running smoothly.
Key features
- High-rigidity welded frame and beam, post-weld tempering
- Frequency-controlled international-brand spindle motors
- Servo X/Z axes with +/-0.02mm positioning accuracy
- For V-grooving stainless steel and aluminium before bending
- Optional dual/multi tool configuration for higher output
Specifications
| Max. processing length | 4000 mm |
| Max. processing width | 1300 mm |
| Plate thickness range | 0.5-4 mm |
| A-axis max. stroke | 4000 mm |
| Cutting speed | 35-60 m/min |
| Return speed | 80-100 m/min |
| X-axis max. stroke | 1250 mm |
| X-axis return speed | 20 m/min |
| Z-axis max. stroke | 50 mm |
| Z-axis moving speed | 15 m/min |
| Positioning accuracy | +/-0.02 mm |
| Overall length | 6000 mm |
| Overall width | 2300 mm |
| Overall height | 1380 mm |
Applications: sheet metal fabrication, enclosures and cabinets, power and communication poles, automotive, elevators, kitchen equipment, lighting and medical equipment.
Customisation: bending length, tonnage, axis count and automation can be built to your workpiece. Send us your drawings for a quotation.
