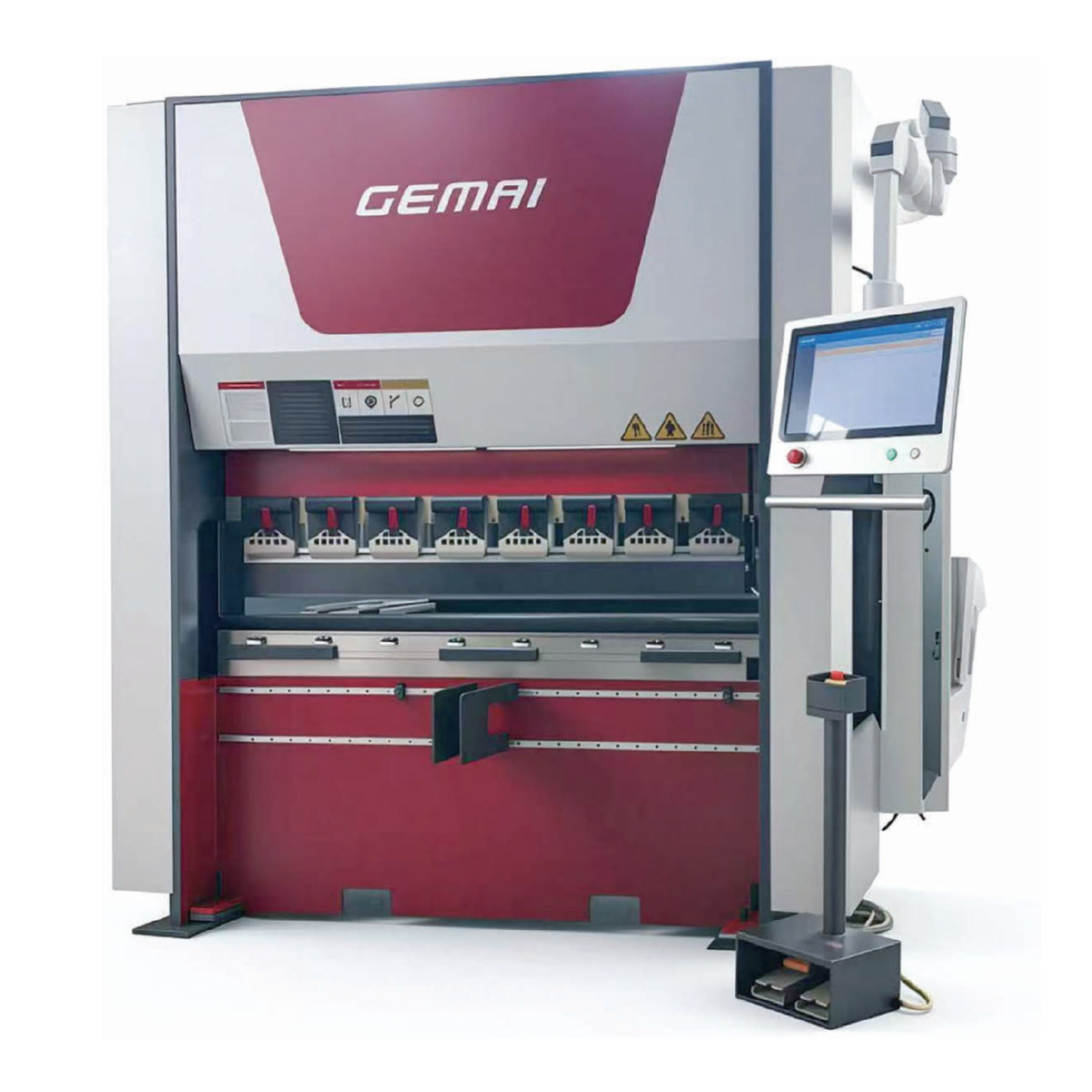

GMD-40/1250 All-Electric Servo CNC Press Brake
Bending force 400 kN | Bending length 1250 mm | All-Electric Servo CNC Press Brake
GMD-40/1250
All-Electric Servo CNC Press Brake
GMD series is a fully electric servo press brake driven directly by servo motors. It processes faster than conventional hydraulic bending, uses no hydraulic oil and is environmentally clean. Compared with traditional machines it saves about 80% energy, with fast response and high productivity, and repeat positioning accuracy within +/-0.01mm.
Key features
- Direct-drive all-electric servo system, no hydraulic oil, ~80% energy saving
- Repeat positioning accuracy within +/-0.01mm
- Oil-free and quiet, ideal for clean workshops
- 15-inch colour touch screen with EtherCAT bus control
- Optional 4+1 / 6-axis back gauge and robot automation
Specifications
| Bending force | 400 kN |
| Bending length | 1250 mm |
| Distance between housings | 1000 mm |
| Cylinder stroke | 150 mm |
| Open height | 490 mm |
| Main motor power | 15×2 kW |
| Max. speed – approach | 200 mm/s |
| Pressing speed | 0-50 mm/s |
| Return speed | 200 mm/s |
| Overall length | 1900 mm |
| Overall width | 1500 mm |
| Overall height | 2420 mm |
| Weight | 3800 kg |
Applications: sheet metal fabrication, enclosures and cabinets, power and communication poles, automotive, elevators, kitchen equipment, lighting and medical equipment.
Customisation: bending length, tonnage, axis count and automation can be built to your workpiece. Send us your drawings for a quotation.
NANTONG GEMAI CNC MANUFACTURING MACHINE TOOL CO.,LTD.
Tel: +86 513 88219788 | E-mail: 745241157@qq.com | Web: www.gmsklc.com | Add: Industrial Concentration Zone, Libao Town, Haian, Jiangsu, China
| Series | GMD All-Electric Servo CNC Press Brake |
|---|---|
| Bending force (kN) | 400 kN |
| Bending length (mm) | 1250 mm |
